Dust and Gas Measurement

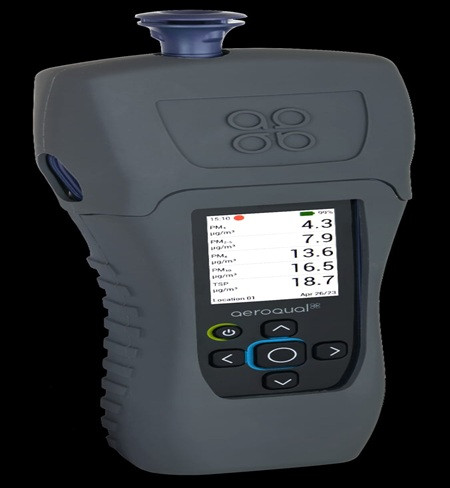

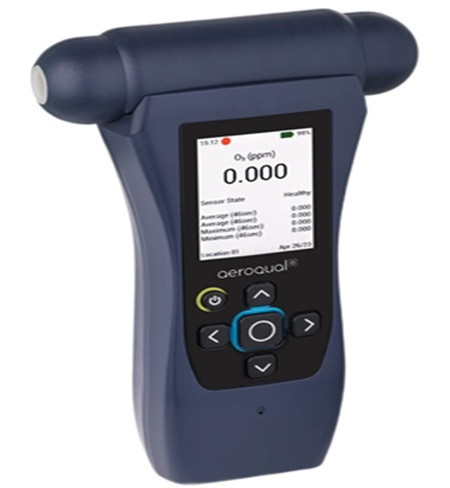

Aeroqual Ranger™ is the ultimate handheld air quality monitoring solution, delivering highly accurate measurements across a wide range of pollutants in a durable, connected package. Ranger combines the capabilities of a stationary monitor with the portability of a handheld device, featuring active-sampling technology, Cloud-based data visualizations, and an unmatched long-life battery. Swap out sensor heads in seconds and gather real-time data for up to 15 common pollutant types. Wi-Fi connectivity and cable data transfer included.
Particulate Matter
PM1, PM2.5, PM4, PM10, TSP
Gas pollutants
CO, CO2, NO2, VOCs, O3, SO2, H2, H2S, Cl2, CH2O, CH4, NH3, C2Cl4
Measurement units
PM: mg/m3, μg/m3
Gas: ppm, ppb, mg/m3, μg/m3
Displayed measurements:
Instantaneous, 1-minute and 5-minute averaged concentration AQI for PM2.5 (Cal/OSHA)
Field calibration
Gas sensors: Zero and Span
PM sensor: Zero, Span and Flow
Factory calibration: Traceable certified calibration certificate valid for 1 year Hot-swap sensor option available. Hot swap is a factory calibration program that delivers a factory calibrated sensor head to you without the hassle of sending your old one back (see Aeroqual distributor)
Environmental operating conditions and Ingress Protection:
Temperature: -10ºC to 40ºC (14ºF to 104ºF)
Humidity: 0 to 95% RH non-condensing
IP Rating: IP20
Power
Battery type: Lithium Ion Battery life: >20 hours Charger connector: USB-C Recharge time: approximately 4.5 hours
Data logging Storage:
5 years on-board
Logging interval: 60 seconds
Software:
Aeroqual Cloud for Ranger
Data connectivity:
Wi-Fi, USB-C cable file download, Analogue 0-5v output
Physical characteristics Size: 170 x 83 x 37 mm (6¾” x 3¼” x 1½“) Weight: 430g (15 oz)
Compliance:
IEC/EN 61326-1
EN 55011:2010
AS/NZS CISPR 11:2011
IEC/CISPR 11:Ed.5.1
FCC Part 15
IEC 61010-1:2010+A1:2016AU/NZ: AS 61010.1;
Europe: EN 61010-1:2010 + A1:2019;
Canada: CAN/CSA-C22.2 No. 61010-1-12 3rd Edition;
USA: UL 61010-1 3rd Edition
RoHS 3 (EU 2015/863), REACH
| Download Files | |
|---|---|
Aeroqual Ranger – Portable Air Quality MonitorFile Size: 305.19 KB, File Type: PDF, Updated: 15 hours ago |
Download Now |
